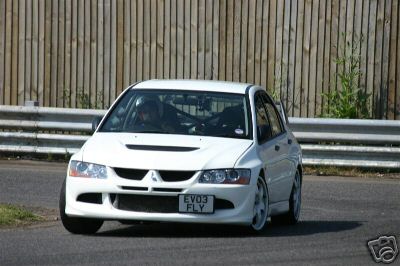

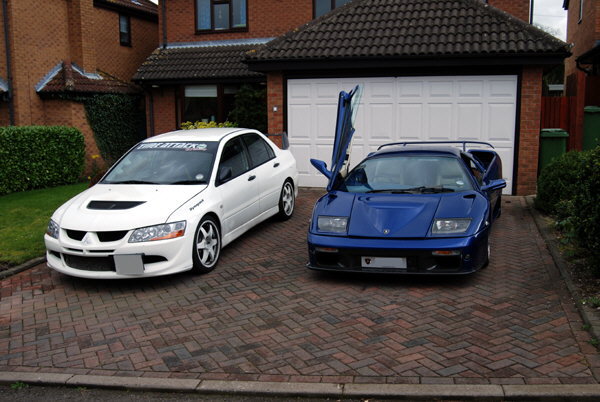

Mitsubishi Lancer Evo 8 MR RS



~700+ BHP on Race Fuel
~600 BHP on Standard Unleaded RON97/98
weight ~1300kg

Specs (according to Letstorque BHP Calculator)

Power to Weight Ratio (BHP Per Ton) : 547.11
0 - 60 (Secs) : 2.83
0 - 100 (Secs) : 5.98
60 - 100 (Secs) : 3.18
Quarter Mile (Secs) : 10.81
Terminal Speed (MPH) : 137.24
Drag Strip Quarter Mile (Secs) : 10.41
Drag Strip Terminal Speed (MPH) : 141.15


Rpm Limit: 8000 Rpm
Capable of 750-800 BHP with larger turbo and remap

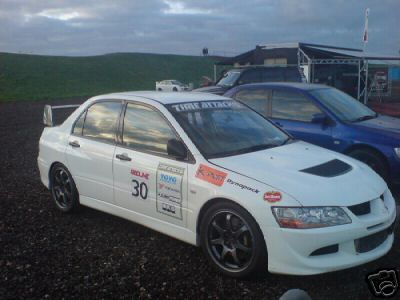

Oulton Park 2008



Engine :-

272 HKS Cams
94mm 2.3 ND Crankshaft
Crower 150mm Steel Con Rods
ND Spec 85.6mm JE Pistons
ND Blueprinted & Balanced Bottom End
Tomei Main Stud Kit
No Balance Shafts
Up-rated Oil Pump Assembly
ND Modified Sump
ND Large Oil Cooler Kit
HKS 1.2mm Metal Head Gasket
ARP Head Stud Kit
ND Gas Flowed Cylinder Head With Oversize Inlet & Exhaust Valves
ND Valve Spring Kit
ND Ti Retainers
HKS Vernier Pulleys
Std Inlet Manifold & Throttle Body


Turbo / Intercooler :-
ND GTR3542 External Wastegate Turbo Kit
ND Tubular Exhaust Manifold
HKS Super Powerflow Air Filter
HKS R Type Racing Intercooler
HKS Dump Valve with full Re-circ system
ND 3 Pipework
ND Custom Engine Breather System
Magnex Full 3 Exhaust System
    (97dB Static on tick-over - 108dB @5000rpm)


Electronics :-
Motec M800 OEM ECU (Full Idle Control)
Greddy B Spec 2 Boost Controller
4 Bar TTE Map Sensor


Fuelling:
SARD 1000cc Injectors
SARD Racing Fuel Regulator
NGK-R Racing Spark Plugs
HKS Fuel Rail
Sytec In Tank Lift Pump
ND Boot Mounted Swirl Pot
Dash 6 & Dash 8 Fuel Supply Lines & Fittings
Bosch 044 External Fuel Pump
High spec "BLUE" fuel lines all through


Chassis Mods:
Drivetrain/Brakes/Suspension:
ND Triple Plate organic 184mm Clutch
Std Low Ratio RS Gearbox
Active ACD Front Differential
Uprated Centre Differential
RS Rear Differential
Tein Circuitmaster Coilovers/Suspension
Tein Pillowball Front Suspension Top Mounts
ND Suspension Geometry Settings rear 3 toe in camber
Cusco Uprated front strut brace
Cusco Carbon fibre rear anti-roll bar
RS Rear suspension boot strengthening bar

Brake Mods:
AP Racing 332 X 32mm 6 Pot Front Brake Kit
Goodride hoses & uprated fluid
Mintex F4R Carbon Metallic Front Pads
Black Rear Brembo Callipers (To Suit AP Callipers)
Wheel Mods:
8 X 18 White Alloy Compomotive's
Avon 225/40/18 ZZR Cut Slick Tyres

Additional:
Removable Rear Roll cage
Sabelt 4 Point racing harness
Carbon Fibre Evo IX Vortex generator roof spoiler
Carbon Fibre Evo IX Front splitter
Evo 8 interior with Low seat runners
Sparco Suede Steering Wheel & Boss
Pillar mounted gauges for Oil / Temp
Ralliart Wing Mirrors
Ralliart Racing Thermostat
Ralliart Metal Pedals
Exhaust bung (reduces to 102dB)
SARD Oil Filler Cap
Alpine MP3 With Upgraded Sony Speakers Fitted All Round
Quad set Video camera Unit / 4 bullet Cams
Alpine 7" Video monitor screen
Toad Cat 1 Alarm & Immobilizer
Front Mounted Garage Door Opener :-)
RAC Trackstar Plus GPS Tracking Device
Road Angel GPS Radar & Laser Detector
RaceLogic GPS Performance Box (below)
